| Detailed Characteristics |
Value |

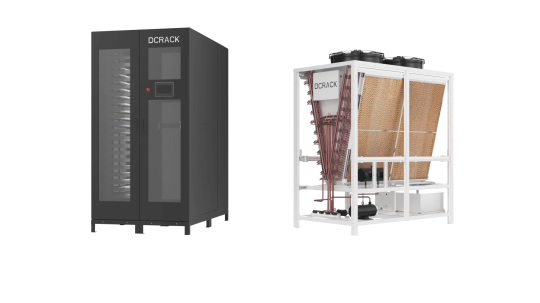

| Part 1: Server Cabinet |
Value |
| Hardware Configuration |
|
| Size (Length*Width*Height), mm (without package) |
1,600*1,200*2,350 |
| Size (Length*Width*Height), mm (with package) |
1,720*1,300*2,400 |
| Net weight, kg (without package) |
668 |
| Gross weight, kg (with package) |
686 |
| Network connection mode |
RJ45 Ethernet 10/100M |
| Power Supply |
|
| Power supply AC Input voltage, Volt(2-1) |
380~415 AC |
| Power supply AC Input Frequency Range, Hz |
50~60 |
| Maximum Power supply AC Input current, Amp(2-2) |
63 |
| Fan |
|
| Rated power, W |
2,500 |
| Noise, dBA@1m |
85 |
| Size (Length*Width* Thickness), mm |
378*378*375 |
| Number of fans |
3 |
| Part 2: External Cooler |
Value |
| Hardware Configuration |
|
| Size (Length*Width*Height), mm (without package) |
1,896*1,026*2,180 |
| Size (Length*Width*Height), mm (with package) |
2,000*1,130*2,360 |
| Net weight, kg (without package) |
396 |
| Gross weight, kg (with package) |
414 |
| Power Supply |
|
| Power supply AC Input voltage, Volt(2-1) |
380~415V AC |
| Power supply AC Input Frequency Range, Hz |
50~60 |
| Maximum Power supply AC Input current, Amp(2-2) |
63 |
| Heat pump |
|
| Rated power, kW |
8.5 |
| COP (typical) |
4.75 |
| Refrigerant |
R410A |
| Fan |
|
| Rated power, kW |
1.85 |
| Noise, dBA@1m |
82 |
| Size (Length*Width* Thickness), mm |
805*805*211 |
| Number of fans |
2 |
| Refrigerant pump |
|
| Rated power, W |
550 |
| Flow rate, m3/h |
1 |
| Pump head, m |
48 |
| Size (Length*Width* Height), mm |
420*152*202 |
| Environment requirements |
Value |
| Ambient temperature, °C |
-20~45℃ |
| Installation distance (max), m(2-3) |
50 |
| Storage temperature, °C |
-20~70 |
| Operation humidity(non-condensing), RH |
10~90% |
